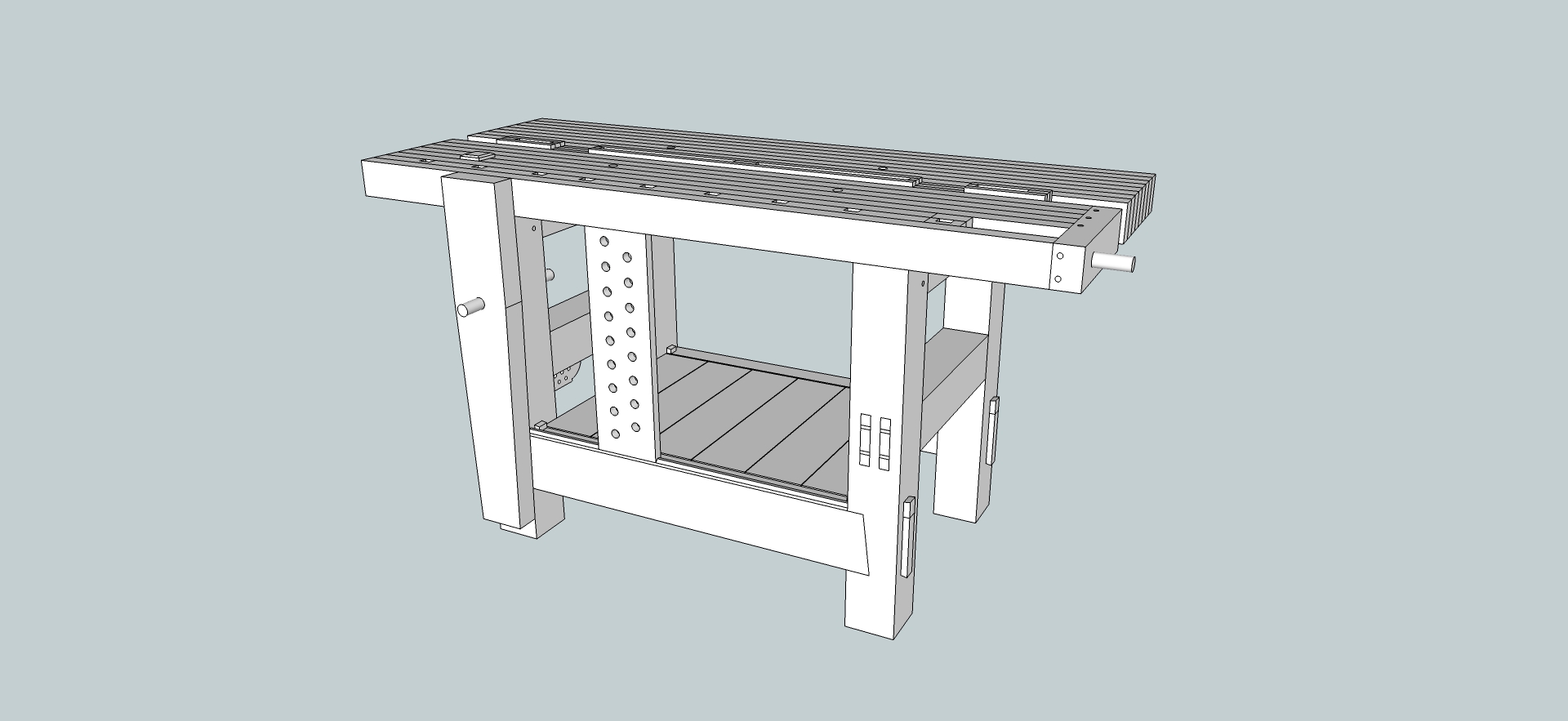

It’s been almost four years since I’ve completed my workbench and I thought it was about time to take a look back and see how things have held up. Since then one of the questions I’ve been asked a few has to do with the SketchUp model I created/modified from the FineWoodworking download. I used their file as a starting point for angles in the joinery but otherwise I created the file from the ground up and I don’t feel like I’m violating any particular copyright issues so here is a link for my file. Please let me know if there are any issues with the link.
This post isn’t really going to be heavy in detail but I wanted to cover a few things and answer a few questions from comments I’ve failed to answer (probably because it’s been two years since my last post). First things first, I abuse my bench. It was never meant to stay pretty which is why it was built from construction grade lumber.
Before I move on I should mention that I am now in Yuma, AZ and the bench was built in Jacksonville, NC which has caused a good amount wood movement due to the drastic change in climate. Overall the bench has been solid over the past 3+ years. I was specifically asked about how the wedged tenons have held up so here they are.
I think I may have flushed them up once while still in NC but don’t quote me on that. One of the good things about the dovetailed tenon stretcher or whatever they called it was the wedge that provided the ability to not only easily break down the bench but tighten things up due to moisture loss/gain.
Yeah, they’re seated pretty deep right now but holding firmly. I’ve had a couple of changes to the bench over the years. First, the sliding deadman broke so I removed all traces of it to include the bottom guide (no direct photo). I also stopped using pins (an allen key) in the leg vise. Currently I just use a boards close the same thickness of whatever is in the vise and clamp down.
I also removed the tail vise.
You can see on the left side I drilled the lag bolts way to close to the edge and basically it was starting to fail. Right now I’m just using the planing stop when milling my boards. If/when I build my next bench I’m not 100% sure I would add it again.
As I mentioned above this bench has had a good amount of movement and it is definitely noticeable on the the benchtop.
This use to be nice and flush but oh well. I’ve flatted the side with the planing stop just once over the years but it can use another go. Honestly I want to just build another bench and re-purpose this one somewhere else in the shop.
My biggest gripe with this bench is the weight. It doesn’t weigh nearly enough and will occasionally move while planing tough woods. The fact that this bad boy has lasted almost four years and honestly is still going strong makes me happy. Still doesn’t change the fact that it may be time for a new one.
If there is anything in particular that you may want to know just leave a comment below.
